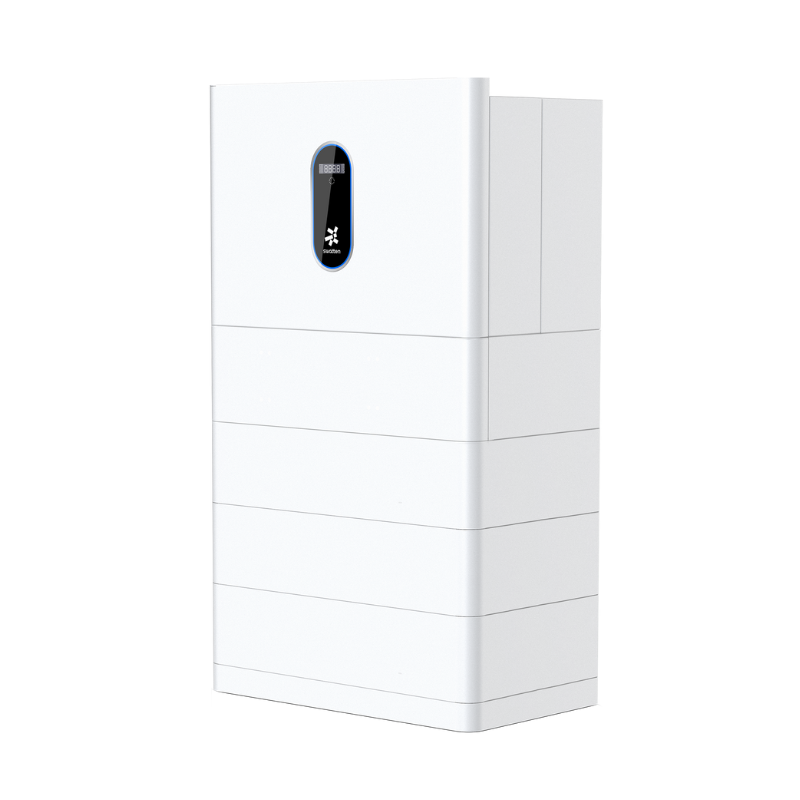

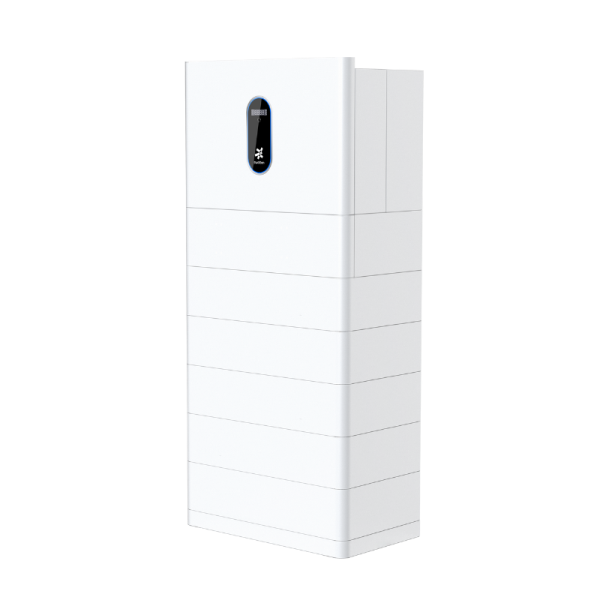

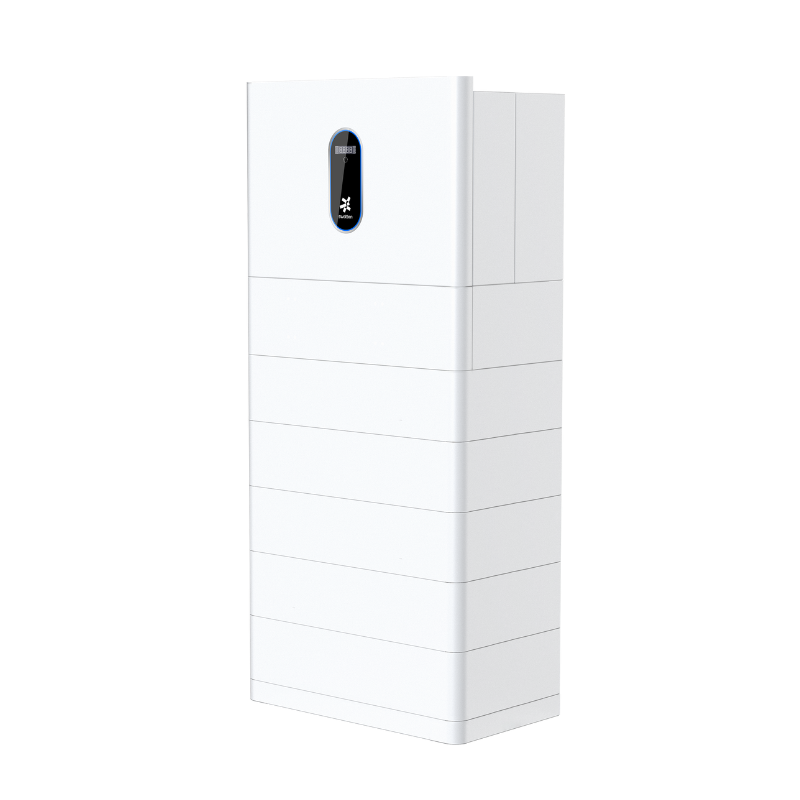

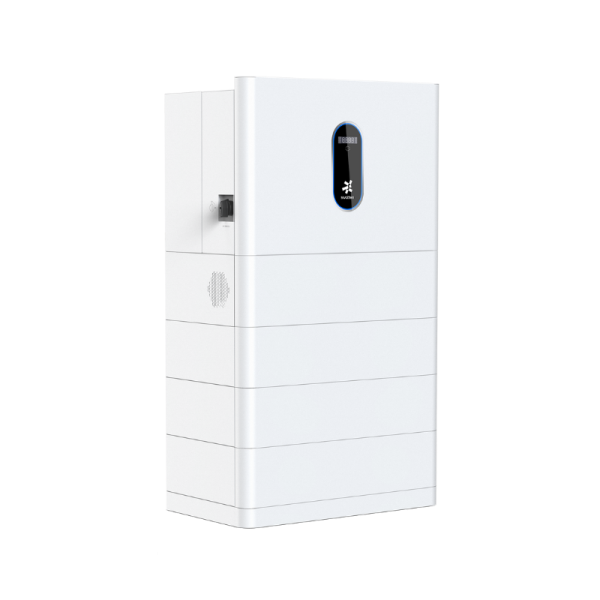

All-in-one Three phase (HV) 10kW +9.6kWh battery
Login to view price
- 10-year warranty. Replace new machines instead of repairing.
- No need to worry about after-sales between inverters and batteries of different brands.
- Integrated humanized design, removed redundant cables.
- Adds points to beauty and attractiveness.
- Stack installation with Plug & Play connection.
- Makes the installation process time-saving, cost-effective and worry-free.
- Charging electric vehicles with clean energy, effectively save charging costs.
Description
PV (Input)
| Specification |
Value |
| Max. recommended PV array power [Wp] |
15000 |
| Max. PV input voltage [V] |
1000 |
| Rated PV input voltage [V] |
600 |
| Start-up input voltage [V] |
180 |
| MPPT voltage range [V] |
150-950 |
| No. of MPPT/Strings per MPPT |
2 (1/2) |
| Max. PV input current [A] |
48 (16/32) |
| Max. DC short-circuit current [A] |
60 (20/40) |
Battery
| Specification |
Value |
| Battery type |
Li-ion battery |
| Max. charge/discharge current [A] |
30/30 |
| Nominal voltage range [V] |
192-512 (64 per module) |
| Nominal capacity range |
9.6 kWh-25.6 kWh (3.2 kWh/50 Ah per module) |
| Number of connectable modules |
3-8 modules |
Backup Output
| Specification |
Value |
| Rated output power (off-grid mode) |
10000W/10000VA |
| Peak output power (off-grid mode) |
12000VA, 5min |
| Max. output power (on-grid mode) [VA] |
11000 |
| Max. output current (on-grid mode) [A] |
16.7 |
| Backup switching time [ms] |
<10 |
| Rated voltage [V] |
3/N/PE 220/380; 230/400; 240/415 (±2%) |
| Frequency range [Hz] |
50/60 (±0.5%) |
Total harmonic distortion
(THDv, rated power, linear load) [%] |
≤2 |
Grid (Input/Output)
| Specification |
Value |
| Max. AC input power from grid [VA] |
20600 |
| Rated AC output power [W] |
10000 |
| Max. AC output power [VA] |
11000 |
| Max. AC output current [A] |
16.7 |
| Rated AC voltage [V] |
3/N/PE 220/380; 230/400; 240/415 |
| AC voltage range [V] |
270-480 |
| Rated grid frequency [Hz] |
50/60 |
| Grid frequency range [Hz] |
45-55/55-65 |
| Total harmonic distortion (THDi, rated power) [%] |
<3 |
| Power factor at rated power Adjustable power factor |
> 0.99/0.8.leading to 0.8 lagging |
Efficiency
| Specification |
Value |
| Max. efficiency / European efficiency [%] |
98.40/97.90 |
Protection & Function
| Feature |
Available |
| Parallel* |
Master-slave mode |
| Surge protection |
Type II, DC and AC |
| Overvoltage category |
II DC and III AC |
| Protective class |
Class I |
| Gird monitoring |
Yes |
| DC reverse polarity protection |
Yes |
| Battery input reverse polarity protection |
Yes |
| Insulation monitoring |
Yes |
| AC short-circuit protection |
Yes |
| Residual current protection |
Yes |
| DC switch (PV) |
Yes |
| Over-heat protection |
Yes |
| AFCI |
Yes |
General Data
| Specification |
Value |
| Topology (PV/Battery) |
Transformerless |
| Degree of protection |
IP65 |
| Dimensions (W×H×D) [mm] |
640×1012×360 (With 3 Battery modules) |
| Weight [kg] |
<147 (With 3 Battery modules) |
| Mounting method |
Floor-standing |
| Operating ambient temperature range [°C] |
-25-60 (Derating above 45) |
| Storage temperature [°C] |
-20-45 (Ç1 Month)/-20-25 (Ç6 Months) |
| Allowable relative humidity range [%] |
5-95 |
| Cooling method |
Natural convection |
| Max. operating altitude [m] |
2000 |
| Display |
LED |
| Communication |
RS485 / CAN / WLAN |
| DI/DO |
1×DI / 1×DO / DRM |
| DC connection type |
MC4 |
| Battery connection type |
MC4 |
| AC connection type |
Plug and play connector |
